Home > Product > Plastic machine blade

Recycled plastic

Recycled plastic

Recycled plastic

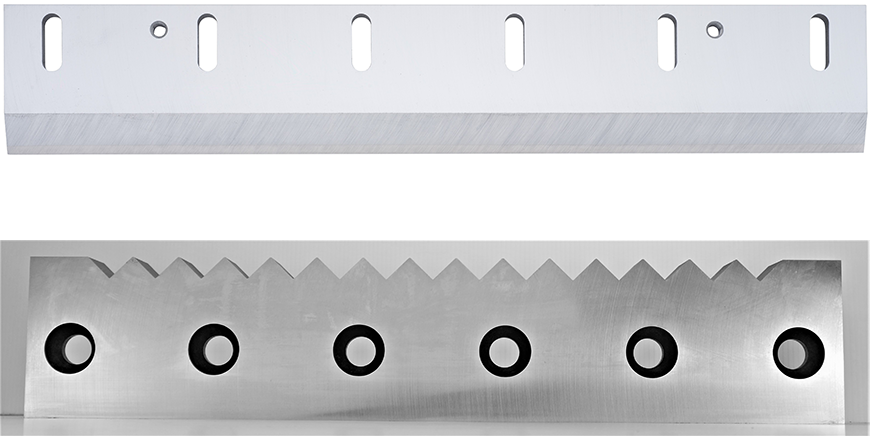

Crusher knife

  • Material :

    Tool steel , High speed steel,
    according to customer orders

  • Dimension :

    According to customer orders

Plastic Pellets

Plastic Pellets

Plastic Pellets

Pelletizer knife

  • Material :

    Tool Steel, High speed steel, Tungsten carbide

  • Dimension :

    Length maximum up to 750mm.
    Edge width minimum to 0.2mm.

Plastic products

Plastic products

Plastic products

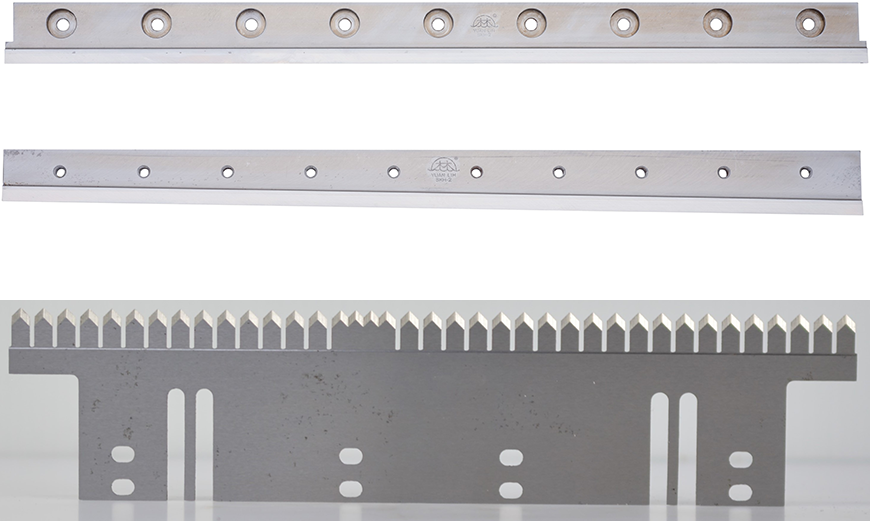

Bag making knife & more

  • Material :

    Inlaid HSS, Tool, Tungsten carbide
    according to customer orders

  • Dimension :

    according to customer orders



Bag making knife
百久機型適用
Part Size in mm Hole / Number Edge(°) Product No. Inquiry
Upper knife (20.5")520.7x57/45x12.7/9 3/8"/9 66˚ /4.5˚ 60521A02
(28.5")723.9x57/45x12.7/9 3/8"/10 66˚ /4.5˚ 60724A10
(32.5")825.5x57/45x12.7/9 3/8"/11 66˚ /4.5˚ 60826A03
(40.5")1028.7x57/45x12.7/9 3/8"/11 66˚ /6˚ 61029A04
(42.5")1079.5x57/45x12.7/9 3/8"/12 66˚ /6˚ 61080A05

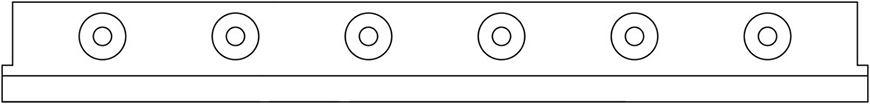

Lower knife (20.5")520.7x60x14/10 Ø(28-11)/6 66˚ /4.5˚ 60521A01
(28.5")723.9x60x14/10 Ø(28-11)/8 66˚ /4.5˚ 60724A03
(32.5")825.5x60x14/10 Ø(28-11)/9 66˚ /4.5˚ 60826A12
(40.5")1028.7x60x14/10 Ø(28-11)/11 66˚ /6˚ 61029A14
(42.5")1079.5x60x14/10 Ø(28-11)/12 66˚ /6˚ 61080A06
意泰機型適用
Part Size in mm Hole / Number Edge(°) Product No. Inquiry
Lower knife (32.5")825.5x60x14/10 Ø(28-11)/9 66˚/45˚/4.5˚ 60826A01
(40.5")1028.7x60x14/10 Ø(28-11)/11 66˚/45˚/6˚ 61029A03
(42.5")1079.5x60x14/10 Ø(28-11)/12 66˚/45˚/6˚　 61080A04

旺全機型適用
Part Size in mm Hole / Number Edge(°) Product No. Inquiry
Upper knife 1100x70.5/62.5x12.7/11 M10/11 85˚/6˚ 61100A10
Lower knife 1100x86x21/14 Ø(19-11)/11 85˚/6˚ 61100A19
泰洋機型適用
Part Size in mm Hole / Number Edge(°) Product No. Inquiry
Cutter 560x60x13.5/10 Ø(22-10)/8+M10/2 90˚/45˚/8˚ 60560A02
690x60x13.5/10 Ø(22-10)/11+M10/2 90˚/45˚/8˚　 60690A06

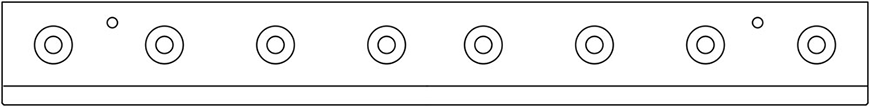

775x60x11.5/9 Ø(22-10)/12+M8/2 90˚/50˚/8˚　 60775A05
890x60x11.5/9 Ø(22-10)/14+M8/2 90˚/50˚/8˚ 60890A01
1030x60x11.5/9 Ø(22-10)/16+M8/2 90˚/50˚/8˚　 61030A02
690x60x13.5/10 Ø(22-10)/11+M10/2+M6/10 84˚/45˚/8˚ 60690A22
