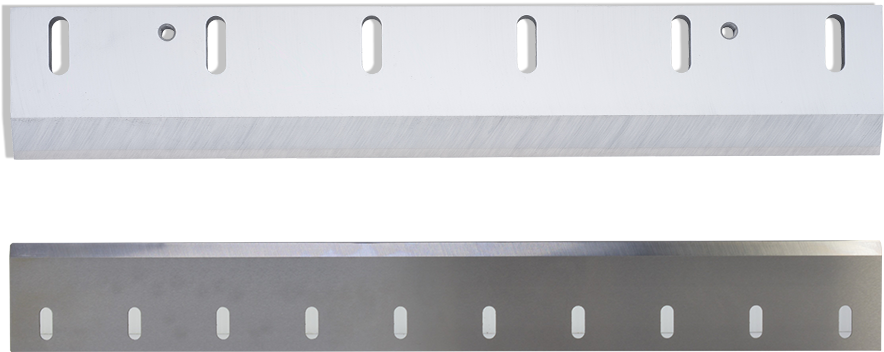

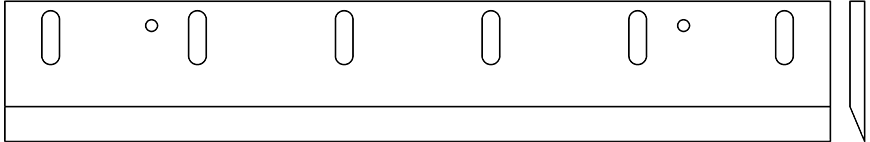

Veneer knife
Veneer knife
-
Application :
Log to Veneer
-
Material :
High Alloy Steel、Tool Steel、High Speed Steel、Tungsten Carbide
-
Dimension :
Customize on orders.
-
Edge angle :
19~24. (may vary based on different edge material
-
Used On :
Peeling machine, venner lathe, veneer slicer machine, clipper machine
| In stock | |||||
|---|---|---|---|---|---|
| Part | Size in mm | Hole / Number | Edge(°) | Product No. | Inquiry |
| Cutter | 675x115x12 | 45mm slot/6+M6/2+M12/2 | 22° | 20675A01 | |
| 675x115x12 | 60mm slot/6+M6/2+M12/2 | 22° | 20675A26 | ||
| 675x115x12 | 60mm slot/7+M12/2 | 22° | 20675A03 | ||
| 675x115x10 | 44mm slot/6+M6/2+M12/2 | 22° | 20675A07 | ||
| 1350x115x12 | 55mm slot/10+M12/4 | 22° | 21350A01 | ||
| In stock 2 | |||||
|---|---|---|---|---|---|
| Part | Size in mm | Hole / Number | Edge(°) | Product No. | Inquiry |
| Left knife | 1350x115x12 | 50mm slot/9+M12/4 | 22° | 21350A53 | |
| 1360x115x12 | 60mm slot/11+M12/2 | 22° | 21360A02 | ||
| 1365x115x12 | 60mm slot/10+M12/2 | 22° | 21365A02 | ||
| 1375x115x12 | 55mm slot/10+M12/4 | 22° | 21375A04 | ||
| Right knife | 1350x115x12 | 50mm slot/9+M12/4 | 22° | 21350A55 | |
| 1360x115x12 | 60mm slot/11+M12/2 | 22° | 21360A01 | ||
| 1365x115x12 | 60mm slot/10+M12/2 | 22° | 21365A01 | ||
| 1375x115x12 | 55mm slot/10+M12/4 | 22° | 21375A05 | ||
| In stock | |||||
|---|---|---|---|---|---|
| Part | Size in mm | Hole / Number | Edge(°) | Product No. | Inquiry |
| Bottom knife | 1350x100x12 | 52mm slot/12+M10/2 | 88° | 21350A46 | |
| Front knife | 2750X102X12 | 54mm slot/20+M12/2 | 86° | 22750A31 | |
| In stock | |||||
|---|---|---|---|---|---|
| Part | Size in mm | Hole / Number | Edge(°) | Product No. | Inquiry |
| Bottom knife | 1350x102x12 | 39mm slot/12+M10/17 | 86° | 21350A03 | |
| Front knife | 2750x102x12 | 49mm slot/20+M10/32 | 86° | 22750A30 | |
Chipper/planer knife
Chipper/planer knife
-
Application :
Recycled timber into wood chips, flakes for board and pulp material. Such as lumber core board ,chipboard/particle board, MDF, OSB.
-
Material :
High Alloy Steel、Tool Steel、High Speed Steel、Tungsten Carbide
-
Dimension :
Customize on orders.
-
Edge angle :
37~42.. (may vary based on different edge material)
-
Used On :
disk chipper machine, drum chipper machine, ring flaker machine and other machines

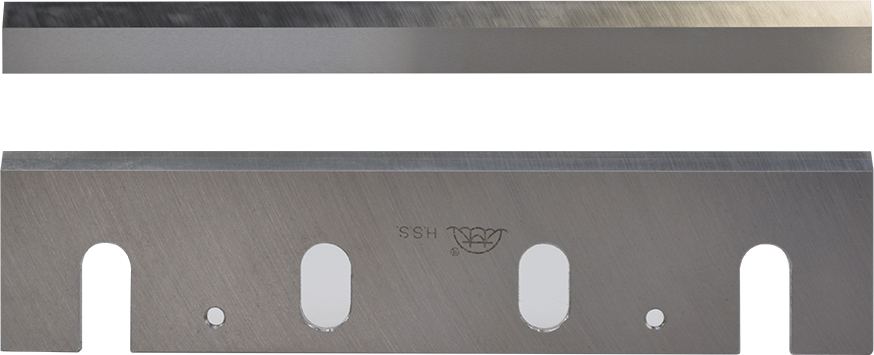

Flaker knife
Flaker knife
-
Application :
Planing of timber
-
Material :
High Alloy Steel、Tool Steel、High Speed Steel、Tungsten Carbide
-
Dimension :
Customize on orders.
-
Edge angle :
30~40.. (may vary based on different edge material)
-
Used On :
Planer machine
Electric planer
